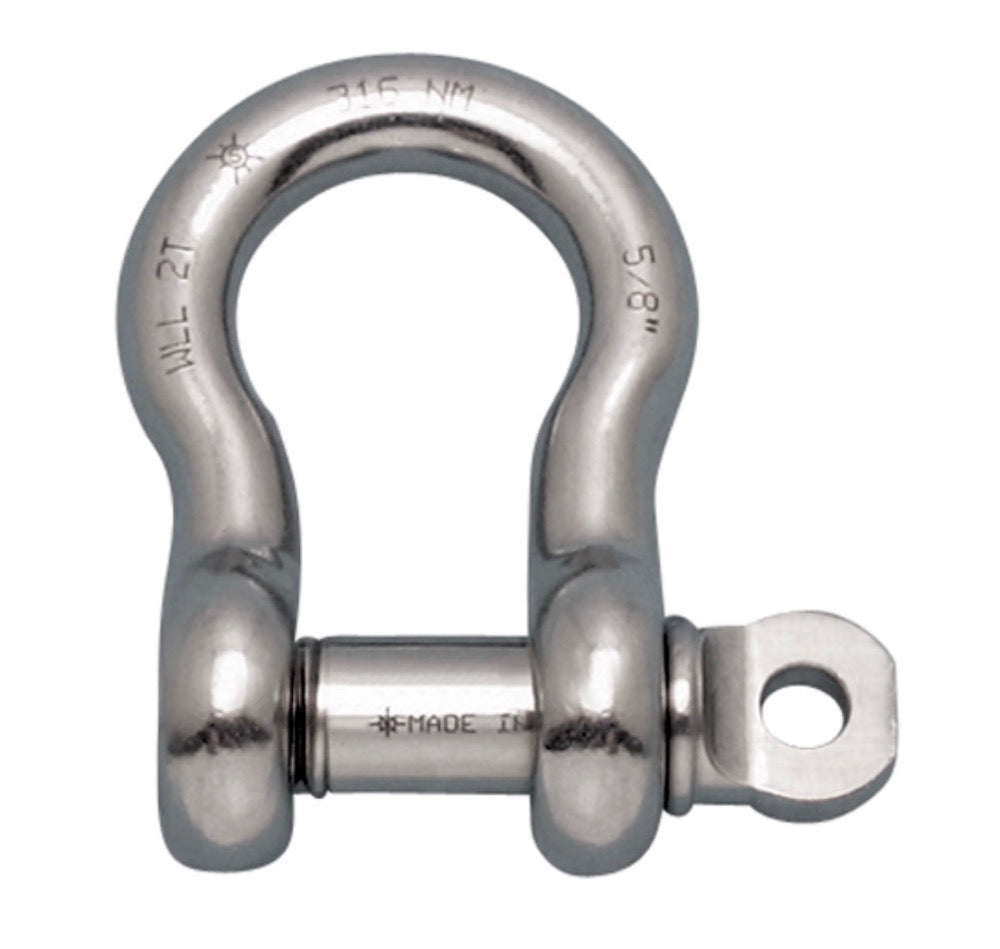

This US Anchor Shackle is made from grade 316-NM stainless steel and features an oversize screw pin. The stainless steel US Anchor Shackle is ideal for salt water applications. This anchor shackle meets ASME B30.26-2010 section 26-0 American National Standard and is also DFARS compliant.
(image is for reference purposes only)
| ITEM |
A
(size) |
B |
C |
D |
E |
X |
Y |
Z |
WLL
(lb) |
WT
(lb) |
| S0116-FS12-US |
7/16″ |
0.50″ |
0.72″ |
1.77″ |
1.10″ |
2.89″ |
2.50″ |
1.01″ |
2,000 |
0.42 |
