Easy to install and maintain, the 1 & 2 Series R4-EM delivers the convenience of electronic access control with the security of a proven, robust, all-metal rotary latch design in a compact, integrated package. Easy push-to-close operation and electronic actuation simplify access across a wide variety of applications. An optional microswitch provides feedback on latch status, and a delayed re-lock version keeps a door unlocked for manual opening/closing cycles.

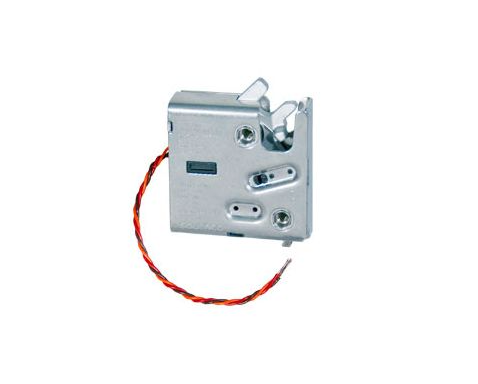

Southco #: R4-EM-R732-132
Specifications
Material |
Steel |
Finish |
Nickel Plated |
Thread or Hole Type |
Thru Hole |
Trigger Style |
Rear Trigger |
Installation |
Rivet / Screw |
Connector Options |
No Connector |
Re-Lock Type |
Delayed |
Packaging |
Individually Packaged |
Microswitch |
No Switch |
Class |
R4-EM - Electronic Rotary Latches |
Trigger Spring |
Strong Kickout |
